Floorplan - 2015 Keystone RV Sprinter 289FWMLS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 34
+34-
Sleeps 5
-
3 Slides
-
Rear KitchenFront Bedroom
-
34ft Long
-
9,455 lbs

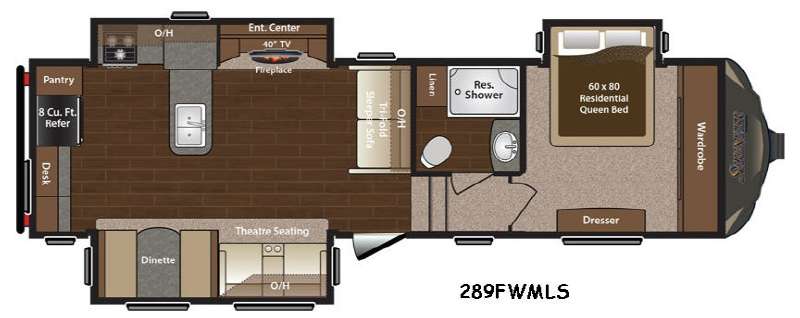

289FWMLS Floorplan
289FWMLS Floorplan
Specifications
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 33 ft 9 in | Ext Width | 8 ft 4 in |
| Ext Height | 12 ft 6 in | Hitch Weight | 1955 lbs |
| Dry Weight | 9455 lbs | Cargo Capacity | 2660 lbs |
| Fresh Water Capacity | 87 gals | Grey Water Capacity | 80 gals |
| Black Water Capacity | 40 gals | Tire Size | ST225/75R15D |
| Furnace BTU | 35000 btu | VIN | 4YDF28924F1532892 |
Description
Description
This wide body designed Keystone Sprinter fifth wheel model 289FWMLS offers a spacious interior with triple slides, a rear corner kitchen, and even a cozy fireplace!
Enter and find a wide open combined living and kitchen area with dual opposing slides. There are theater seats for two and a booth dinette to the left of the door. Straight ahead enjoy additional seating with a tri-fold sleeper sofa that can easily become sleeping space for overnight guests. Adjacent to the tri-fold is a slide out entertainment center with 40" TV and fireplace to enjoy, as well as part of the kitchen area.
You will easily be able to cook up meals and snacks while you travel in this Sprinter kitchen which includes a pull out counter with double sink, and three burner range which is all part of the road side slide. There are also overhead cabinets for dishes and things. Along the rear wall you will find a storage pantry for food items, and an 8 cu. ft. refrigerator for your perishables.
There is also a handy desk found along the rear wall adjacent to the booth dinette slide.
Back at the entry door head up the steps to the right and find a side aisle bath including a residential shower, linen cabinet, toilet, and sink.
Just outside the bathroom door find the entry to the front private master retreat. This room is quite spacious and features a slide out residential queen bed, a full front wall wardrobe with sliding doors, and a dresser opposite the bed for more clothing storage, and so much more!
Enter and find a wide open combined living and kitchen area with dual opposing slides. There are theater seats for two and a booth dinette to the left of the door. Straight ahead enjoy additional seating with a tri-fold sleeper sofa that can easily become sleeping space for overnight guests. Adjacent to the tri-fold is a slide out entertainment center with 40" TV and fireplace to enjoy, as well as part of the kitchen area.
You will easily be able to cook up meals and snacks while you travel in this Sprinter kitchen which includes a pull out counter with double sink, and three burner range which is all part of the road side slide. There are also overhead cabinets for dishes and things. Along the rear wall you will find a storage pantry for food items, and an 8 cu. ft. refrigerator for your perishables.
There is also a handy desk found along the rear wall adjacent to the booth dinette slide.
Back at the entry door head up the steps to the right and find a side aisle bath including a residential shower, linen cabinet, toilet, and sink.
Just outside the bathroom door find the entry to the front private master retreat. This room is quite spacious and features a slide out residential queen bed, a full front wall wardrobe with sliding doors, and a dresser opposite the bed for more clothing storage, and so much more!
Features
Features
Standard Features (2015)
Travel Trailer Exterior
- All aluminum construction
- Performance Insulation Package w/ Astrofoil layer in the subfloor, roof, slideout floors, front wall, and back wall (R30 floor; R28 roof; R18 slideout floor; R20 front & back walls)
- 80-40-80 maximum tank sizes (80 Fresh, 30-60 Black, 60-80 Gray depending on floorplan)
- Generation 2 power stabilizer jacks
- Electric awning with Auto-Dump, friction-hinge adjustment, LED light strip, manual override, and speakers
- Backed for rear ladder (except 299)
- 2 Battery tray with battery disconnect
- Splash guard under slide
- Enclosed underbelly with direct vent heat
- Next Generation Fiberglass Front Cap w/ enclosed LP tank storage
- Lockable baggage doors
- 9” easy opening triple entry step
- XL entry door grab handle
- 4” extra long rain spouts
- Roto-cast seamless holding tanks
- Outside shower
- Cable and satellite hook-up
- Spare tire
- Outside TV bracket with 110 recep, and cable hookups
- Picnic table in pass through
- Outside kitchen models include: two burner cook-top, bumper mounted grill w/LP gas connection, 4.3 cu ft 110v fridge, and sink
- Industry best, 100" wide body construction
- 100” wide-stance axles
- 30” friction hinge entry door
- Laminated aluminum framed sidewalls
- E-Z Lube axles
- Tinted safety glass windows
- Rear bumper storage w/ end caps
- Entry step light
- Tough Guard painted skirt metal
- Two 30lb. LP bottles with auto change-over regulator
- Black tank flush system
- 30 Amp power cord (50 amp detachable cord w/ selected 50 amp service option)
- Aluminum wheels
- Light at the termination points
- Toylok Security System
Travel Trailer Interior
- Full 96” interior width (Added square footage)
- Washer/Dryer prep (299RET, 319MKS, 370FLS models)
- Best in class 42” deep slideouts (Except 316, 319, and 322)
- 12 Volt, 55 amp converter
- 13,500 BTU ducted air conditioner with “Quick Cool” (15k option)
- Water heater bypass for easy winterization
- Residential cabinet hardware
- Overhead slide room cabinets
- In-floor hard-ducted heat
- LED overhead lighting in every room
- Central Command Center for monitoring all tanks and battery, awning, slide-outs, lights, etc.
- Beauflor Linoleum w/ 7 year warranty (2 year cold crack)
- 5/8” water resistant Dynaspan flooring with 25 year full, and limited lifetime warranty
- 80” Interior Height
- Best in class 48” deep dinettes (Except 316, 319and 322)
- 35,000 BTU auto-ignition furnace
- Windows in both Slide-room end walls (N/A in bedroom slide-room on TT)
- Digital Thermostat
- Large picture window at the dinette
- Interior access, manual override for the slide rooms
- LED floor lighting
- Screwed cabinetry with lumber-core stiles
- Wired & framed for 2nd A/C (With 50 amp option)
Travel Trailer Living Room
- Best in class 42” deep slideouts (Except 316, 319, and 322)
- Sound bar entertainment system with Bluetooth technology, USB ports, and Blue Ray/DVD inputs
- Cable TV hook-up with antenna and signal booster
- Satellite prep with RG-6 cable
- Residential fabric-covered valance w/removable drapes
- Tri-fold sleeper sofa w/storage
- 40" HD LED TV
- Door access to storage under booth dinettes
- High grade carpeting
- Overhead storage in the slide room
Travel Trailer Bath
- Large vanity sink
- Residential medicine cabinet with mirror
- Neo angle glass shower(non bunks)
- Reinforced tub support
- GFI receipts in the bathroom
- Porcelain foot flush toilet
- ABS one piece tub surround
- Skylight over tub
- Power roof vent fan
- Illuminated light switch
Travel Trailer Kitchen
- Crown molding in cabinetry
- 6 gallon gas/electric DSI auto ignition water heater w/ 16.2 gph recovery (12 gallon in 370FLS)
- Large split bowl sink with cover
- Metal pull-out sprayer faucet
- Lighted range hood with exhaust fan
- 17 in. oven
- 7 – 8 cu ft, double door, gas/electric fridge (Except 313, 370 and 295)
- Overhead cabinets above the sink
- 3 burner high output gas range
- Full extension ball bearing metal drawer guides
- Waste basket storage
- Microwave with carousel
- 18 cu ft Samsung stainless steel, French-door, 110 fridge w/ 1000 watt independent inverter & battery disconnect (Equipped with ice maker, but not plumbed from manufacturer) (Standard in 313, 370 and 295)
- Raised panel cabinet doors
Travel Trailer Bedroom
- Under bed storage w/ gas struts
- Color matched bedspread
- LED reading lights
- Electrical outlet, and multi media charging station near bed
- Full, residential 60”x80” Dream Collection bed
- High grade carpet in master bedroom
- Roof vent
Travel Trailer Options
- Upgraded 15,000 BTU AC
- Free-standing residential dinette with four chairs
- 50 AMP electrical service w/detachable cord, and 2nd AC prep
- Recliners IPO swivel rocking chairs
- Dual pane windows
- 2nd A/C (13.5k)
Fifth Wheel Exterior
- All aluminum construction
- Performance Insulation Package w/ Astrofoil layer in the subfloor, roof, slideout floors, front wall, and back wall (R30 floor; R28 roof; R18 slideout floor; R20 front & back walls)
- Slam latch baggage doors
- Docking station (water, cable, shower, black tank flush)
- Rear ladder
- Heated pass through compartment
- Splash guard under slide
- G4 cable slide out systems with 4 points of seal
- E-Z Lube axles
- Tinted safety glass windows
- Power landing gear
- 30" Friction Hinge Entry Door
- 9” easy opening triple entry steps
- Battery disconnect
- Tough guard painted skirt metal
- Roto-cast seamless holding tanks
- 50 Amp detachable power cord 30’(except 252)
- Outside TV bracket with 110 recep, and cable hookups
- Spare tire
- Light at the termination points
- Toylok Security System
- Outside TV bracket with 110v and cable hookups
- 100" wide body construction
- 80-40-80 Maximum tank sizes (80 Fresh, 30-40 Black, 60-80 Gray depending on floor plan)
- 60lb LP storage w/ auto change over regulator & 30 lb on board storage compartment
- Painted MaxTurn radius fiberglass front cap w/ blue LED lighting
- 100” wide stance axles
- Electric awning with Auto-Dump, friction hinge adjustment, LED light strip, manual override, and speakers
- Enclosed underbelly with direct vent heat
- Best In Class, 2” Laminated aluminum framed sidewalls
- Gen 2 power stabilizer jacks
- Rear bumper storage w/ end caps
- Entry step light
- XL entry door grab handle
- 4” extra long rain spouts
- Black tank flush system
- Cable and satellite hook-up
- Aluminum wheels
- Picnic Table in pass-through compartment
- Outside kitchen models include: two burner cook-top, bumper mounted grill w/LP gas connection, 4.3 cu ft 110v fridge, and sink
Fifth Wheel Interior
- 6ft. 3in. Slide room height
- 12 Volt, 55 amp converter
- 15k BTU ducted air conditioner with “Quick Cool”
- 50 AMP electrical service (Except 252)
- Water heater bypass for easy winterization
- XL picture window at the dinette
- Industry leading 48” dinettes (Except 298, and 334)
- LED floor lighting
- Central Command Center for monitoring all tanks and battery, awning, slide-outs, lights, etc
- Screwed cabinetry with lumber-core stiles
- Interior access, manual override for the slide rooms
- Wired & framed for 2nd A/C (Except 252)
- 35,000 BTU auto-ignition furnace
- 96” wide-body interior width, best in class!
- 5/8” water resistant Dynaspan flooring with 25 year full, and limited lifetime warranty
- Digital Thermostat
- Industry leading, 42” deep slide outs (Except 298, and 334)
- Industry best, in-floor ducted heat
- LED overhead lighting in every room
- Industry best, 22” deep drawers with full extension ball bearing drawer guides
- Beauflor linoleum with 7 year warranty (2 year cold crack)
- Washer/Dryer prep (324, and 326 floorplans)
Fifth Wheel Living Room
- 6ft. 3in. Slide room height
- Ceiling fan (except 252)
- Pin-up light by sofa
- Satellite prep with RG-6 cable
- Tri-fold sleeper sofa w/storage
- Sound bar entertainment system with Bluetooth technology, USB ports, and Blu-Ray/DVD inputs
- Fireplace (except 252)
- Cable TV hook-up with antenna and signal booster
- Residential fabric-covered valances w/removable drapes
- 40” HD LED TV
Fifth Wheel Bath
- 30”x48” Residential shower w/seat (Except 252, and 334)
- Large vanity sink
- Residential medicine cabinet with mirror
- Reinforced tub support
- GFI receptacles in the bathroom
- Floor to ceiling linen closet (Except 252, and 334)
- Porcelain foot flush toilet
- Skylight over tub
- Power roof vent fan
- Illuminated light switch in Bathroom
Fifth Wheel Kitchen
- Crown molding in cabinetry
- 8 Cu. Ft. refrigerator
- 12 gallon gas/electric DSI auto ignition water heater w/ 16.2 gph recovery (Except 252)
- Dual bowl sink
- Pull-out sprayer faucet
- Lighted range hood with exhaust fan
- 17 in. oven
- 18 cu ft Samsung stainless steel, French-door, 110 fridge w/ 1000 watt independent inverter & battery disconnect (Standard in 298, 304, and 326)
- Overhead cabinets above the sink
- 22" deep drawers
- All hardwood doors and drawer fronts
- 3 burner high output gas range
- Full extension ball bearing metal drawer guides
- Waste basket storage
- Microwave with carousel
- Raised panel cabinet door upper and lower
- Oversized 22’ deep pots and pan drawer
Fifth Wheel Bedroom
- Full, residential 60”x80” Dream Collection bed
- Cable TV hook-up with 110 outlet
- Color matched bedspread
- LED reading lights
- Electrical outlet, and multi media charging station near bed
- Flush floor bathroom/bedroom suites (no bedside step-up)
- High grade carpet in master bedroom
- Under bed storage w/ gas struts
Safety
- Dual hitch safety chains
- Fire extinguisher
- Smoke detector
- Carbon monoxide detector
- Back up light
- Safety glass windows
- LP gas leak detector
- Break away safety brake
- 4 wheel electric brakes
- Security light
Camping Made Easy Package
- Slam latch baggage doors (FW Only)
- E-Z Lube axles
- Power landing gear (FW Only)
- 30” friction-hinge entry door
- Entry step light
- Battery disconnect
- Digital thermostat
- XL entry door grab handle
- 4” extra long rain spouts
- Black tank flush system
- Outside TV bracket with 110 recep, and cable hookups
- Light at the termination points
- Picnic Table in pass-through compartment
- Toylok Security System
- Digital Thermostat
- LED floor lighting
- Central Command Center for monitoring all tanks and battery, awning, slide-outs, lights, etc.
- Interior access, manual override for the slide rooms
- Ceiling fan (FW Only, N/A 252)
- Porcelain foot flush toilet
- Illuminated light switch in Bathroom
- 22” deep drawers
- Pull-down sprayer faucet
- 2 Battery tray with battery disconnect (TT Only)
- Under bed storage w/ gas struts (TT Only)
- Electrical outlet, and multi media charging station near bed
FW Options
- Free-standing residential dinette with four chairs (Std. on 333)
- Recliner(s) IPO swivel rocking chair(s)
- Dual pane windows
- 2ND A/C
Decor
- Alder
- Peppercorn
- Slate Gray
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
-
JohnWill Recommend
The sales staff were great to work with!
We are here to help!
Loading
Willies RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @715-568-4947 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
